Oxygen Purity Meter


Oxygen Purity Meter for Industry and Hospitals - 0 to 100% range!
It is sturdy and simple that any one can use!

Find Out More

Why use Oxygen Purity Meter:
Purity level of oxygen delivery is extremely important to therapy and overall health. Oxygen concentrators maintains different level of purity at different flowrate, and older concentrators can supply lower purity levels. So, it is important for the healthcare professionals to check the purity of Oxygen concentrator output at different settings periodically. For industrial use we need 99.5% pure oxygen whereas for medical use 90 to 96% is recommended. This Oxygen Purity Meter can help you check the Oxygen Purity %.!

At a Glance


Sturdy Design

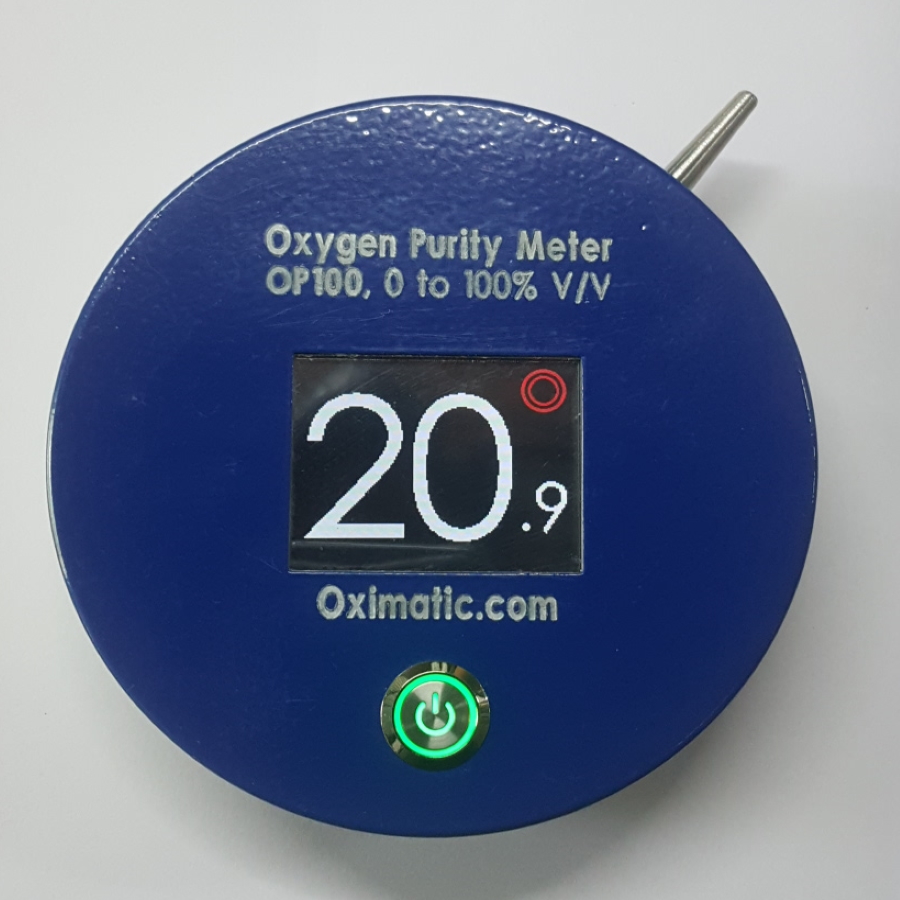

OP100 is made with metal casing to be sturdy for premium quality!

Strong Design

OS100 is made with non-corrosive plastic with heavyduty wall thickness to be strong!

Multi-sample measuring

The value we display in the screen comes from 20 different measurement, to be more reliable.

German made sensor

We are using an internal sensor that is made in Germany!

Pricing and related info.:

Model: OP100 (Premium Product)

...

Price: Rs 22,500 + 18% GST

---

Model: OS100 (Standard Product)

Price: Rs 12,500 + 18% GST

---

(For your security, payment processing is done by Razorpay)

Contact us for dealer price and bulk quantity discount

---

Delivery time: 1 to 2 weeks. (free shipping within India)

Warranty: 1 year

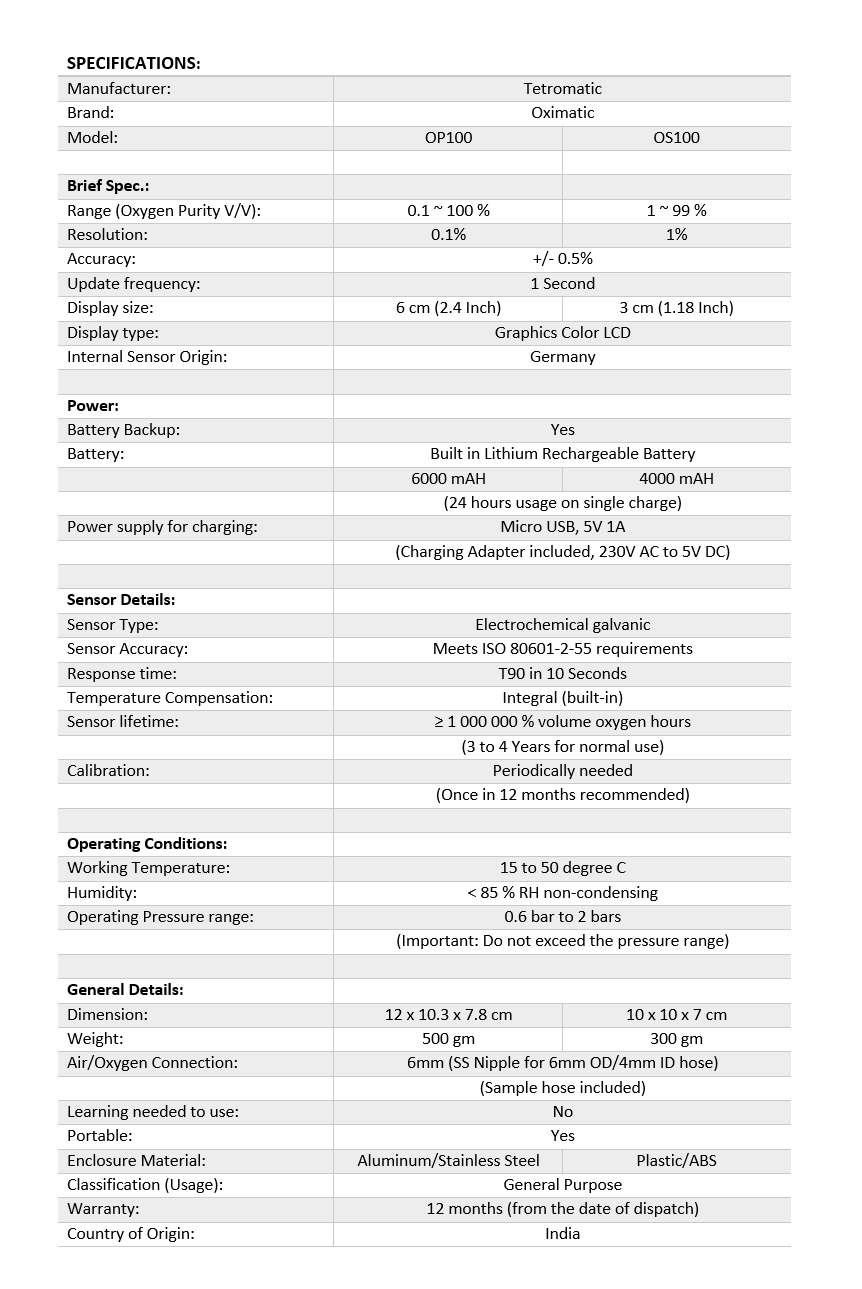

Specification
Manufacturer: Tetromatic
Brand: Oximatic
Model: OP100 OS100
Brief Spec.:
Range (Oxygen Purity V/V): 0.1 ~ 100 % 1 ~ 99 %
Resolution: 0.1% 1 %
Accuracy: +/- 0.5%
Update frequency: 1 Second
Display size: 6 cm (2.4 Inch) 3 cm (1.18 Inch)
Power:
Battery Backup: Yes
Battery: Built in Lithium Rechargeable Battery
6000 mAH 4000 mAH
(24 hours usage on single charge)
Power supply for charging: Micro USB, 5V 1A
(Charging Adapter included, 230V AC to 5V DC)
Sensor Details:
Sensor Type: Electrochemical galvanic
Sensor Accuracy: Meets ISO 80601-2-55 requirements
Response time: T90 in 10 Seconds
Temperature Compensation: Integral (built-in)
Temperature Compensation: Integral (built-in)
Sensor lifetime: ≥ 1 000 000 % volume oxygen hours
(3 to 4 Years for normal use)
Calibration: Periodically needed
(Once in 12 months recommended)
Operating Conditions:
Working Temperature: 15 to 50 degree C
Humidity: < 85 % RH non-condensing
Operating Pressure range: 0.6 bar to 2 bars
(Important: Do not exceed the pressure range)
General Details:
Dimension: 12 x 10.3 x 7.8 cm 10 x 10 x 7 cm
Weight: 500 gm 300 gm
Air/Oxygen Connection: 6mm (SS Nipple for 6mm OD/4mm ID hose)
(Sample hose included)
Learning needed to use: No
Portable: Yes
Enclosure Material: Aluminum/Stainless Steel Plastic/ABS
Classification (Usage): General Purpose
Warranty: 12 months (from the date of dispatch)
Country of Origin: India

Alternative names: Oxygen Analyzer, Oxygen Gas Analyzer, Oxygen Quality Measurement, Oxygen gas meter, Oxygen checking meter, oxygen purity test apparatus

...
Oxygen Purity Meter

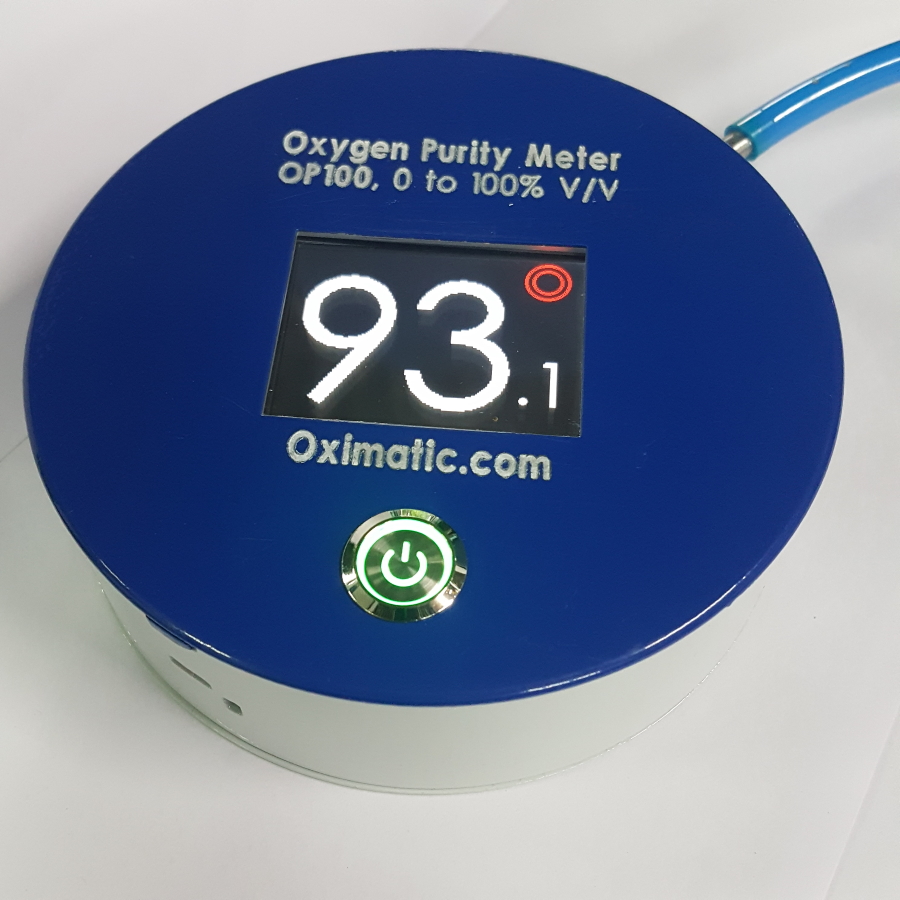

Sturdy design with metal casing.
...
Oxygen Purity Meter
Strong plastic body
Standard product with 1% resolution
...
Oxygen Purity Meter
Large graphical display.

gas oxygen meter

...
Oxygen Purity Meter
0.1 % resolution.

oxygen gas analyzer

...
Oxygen Purity Meter
German made sensor inside

oxygen gas meter

...
Oxygen Purity Meter
20 measurements every second to display once in a second.

oxygen checking meter
